LANCO FILTER PRESS

RECONDITIONING
PROCESS

RECONDITIONING PROCESS

STEP 1.

Receive the used filter press into our warehouse in Sparta, MI. Disassemble the plumbing, mechanical components, hydraulic pump, lines etc.

RECONDITIONING PROCESS

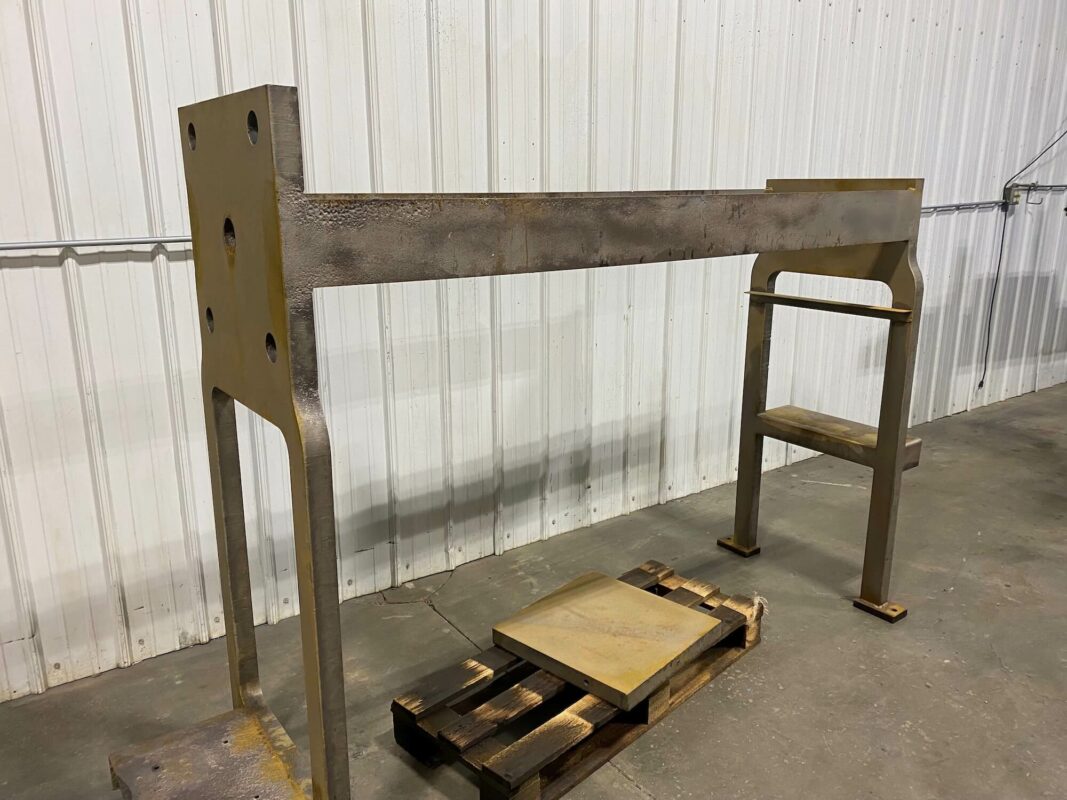

STEP 2.

The filter press frame is sandblasted to remove all paint, impurities and rust.

RECONDITIONING PROCESS

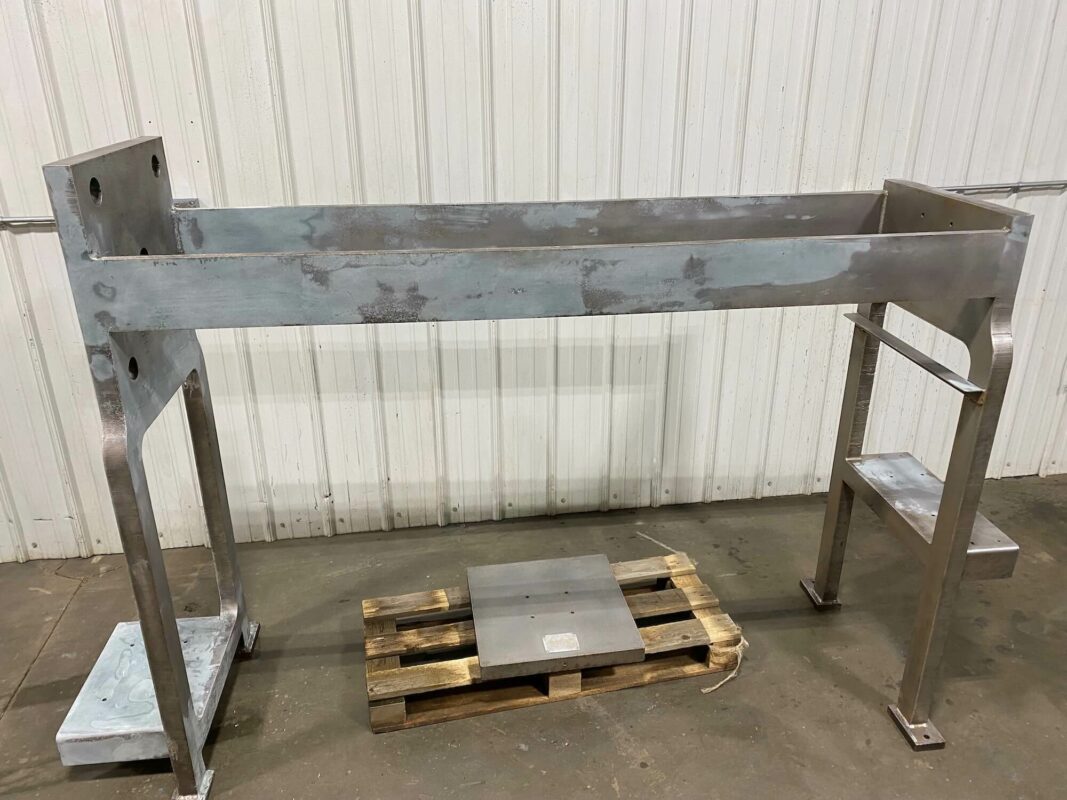

STEP 3.

The frame is inspected at Lanco and necessary sections are replaced with new steel, as needed. Mar-Glass is applied to fix surface area imperfections.

RECONDITIONING PROCESS

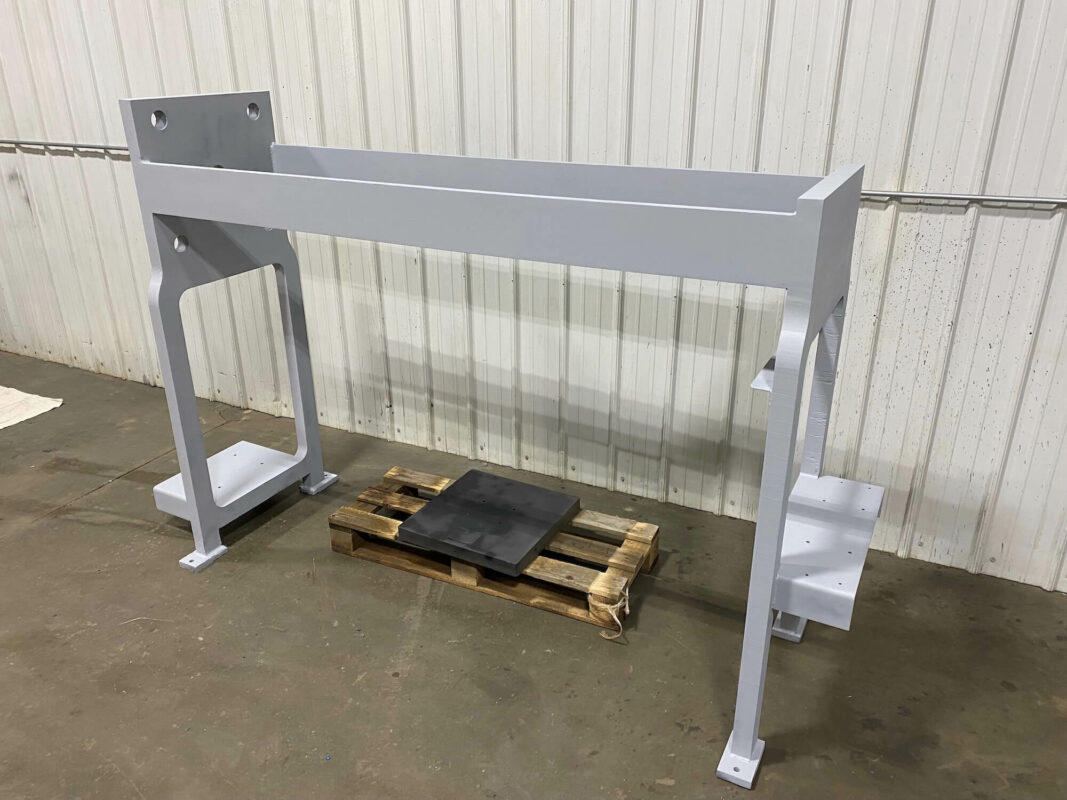

STEP 4.

Primer is applied to the entire filter press frame.

RECONDITIONING PROCESS

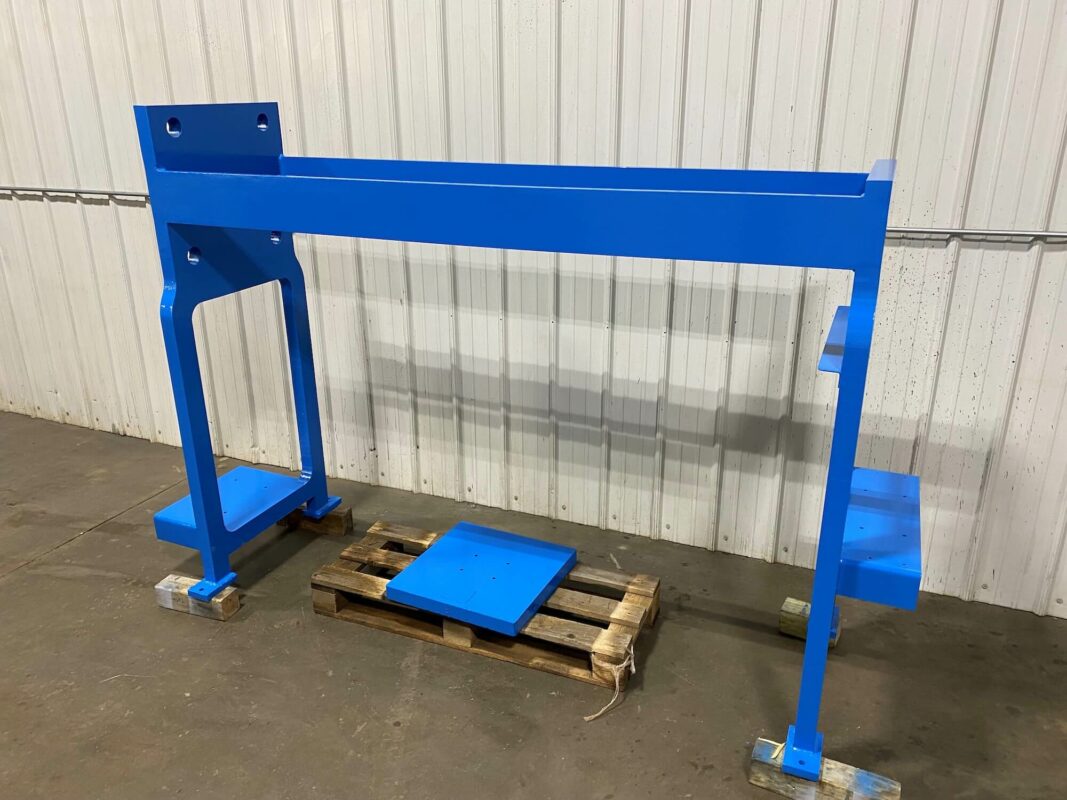

STEP 5.

The reconditioned steel frame is then painted with two coats of oil-based paint.

RECONDITIONING PROCESS

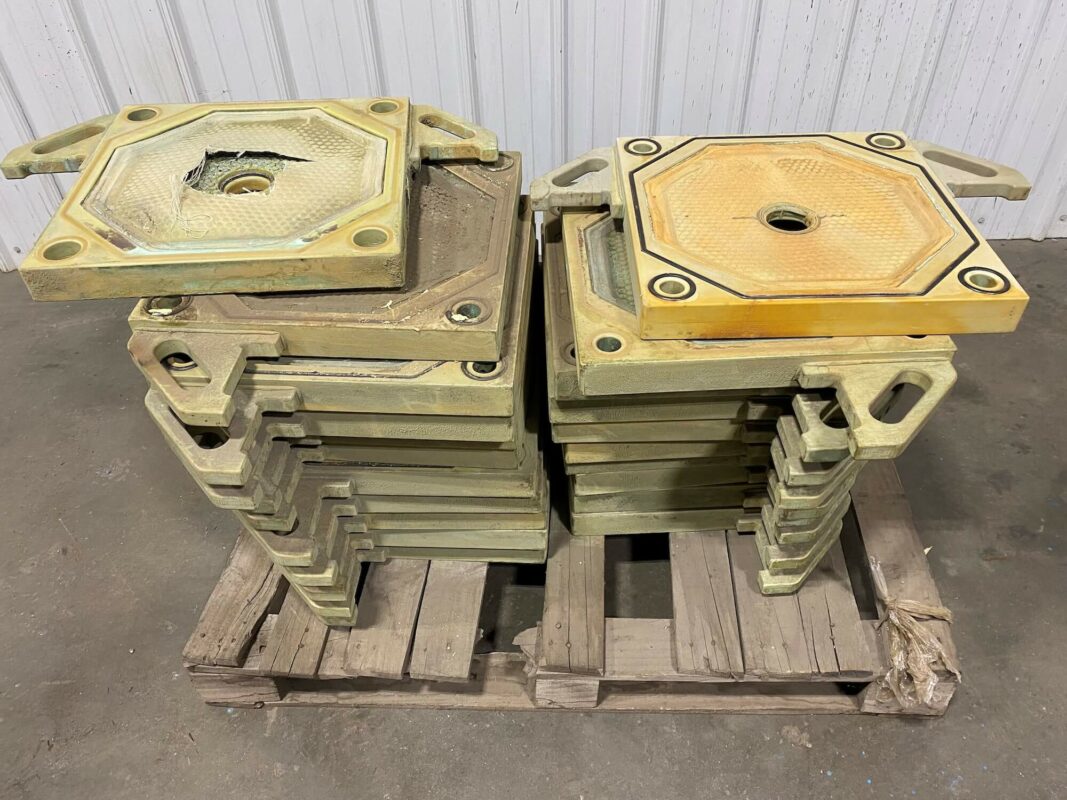

STEP 6.

The gasketing and cloths are removed from the filter press plates. The plates are steam pressure washed removing all contaminants and debris.

RECONDITIONING PROCESS

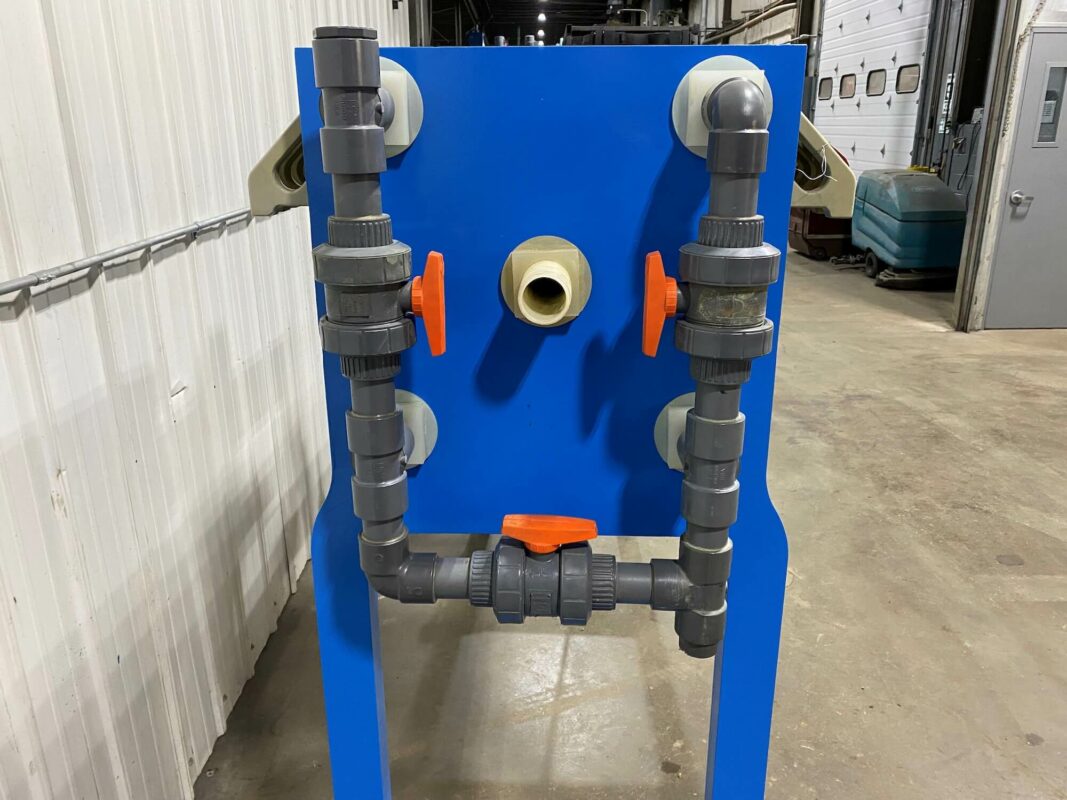

STEP 7.

New PVC plumbing is installed. CPVC or Stainless Steel plumbing can be installed upon request.

RECONDITIONING PROCESS

STEP 8.

The hydraulic lines, cylinder and pump are tested and checked for performance quality. The cylinder is rebuilt by a local company and new lines/pump are installed as-needed as well. New cloth and gasketing can be added to the filter press at this time at the customer’s request.

RECONDITIONING PROCESS

STEP 9.

The filter press is fully refurbished and ready to ship. A video is provided to the customer showing the working condition of the unit.
